MEM 8GB / DDR4 / 2666 MHz DIMM

  • MEM  8GB / DDR4 / 2666 MHz DIMM
  • MEM  8GB / DDR4 / 2666 MHz DIMM

Voor 17:00 besteld morgen in huis!

    Beschikbaar in de winkel: Beschikbaarheid controleren

    € 51,95 Gratis verzending

    Aan verlanglijst toevoegen

    • Snelle levering Tooltipdoorgaans binnen 24 uur geleverd
    • Uitstekende Service
    • Gedegen vakkennis
    • Gigantische voorraad
    Placeholder4,8

    Lovende beoordelingen!

    “Super Service!”

    Productomschrijving

    MEM 8GB / DDR4 / 2666 MHz DIMM

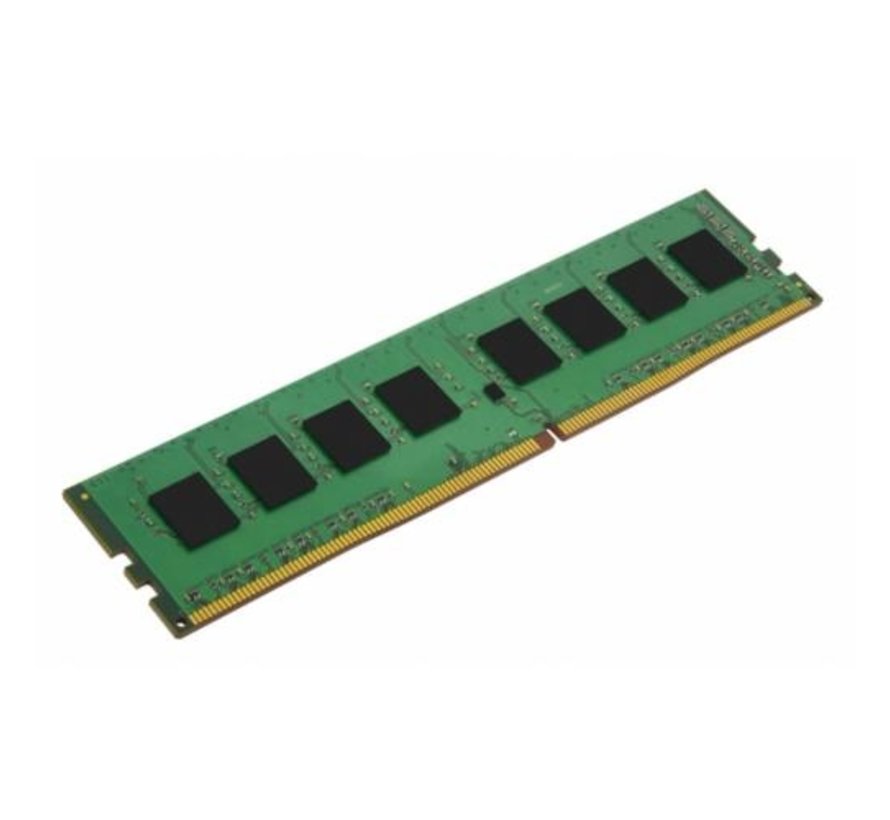

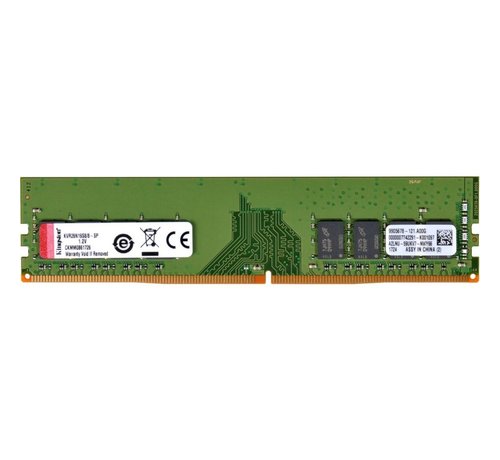

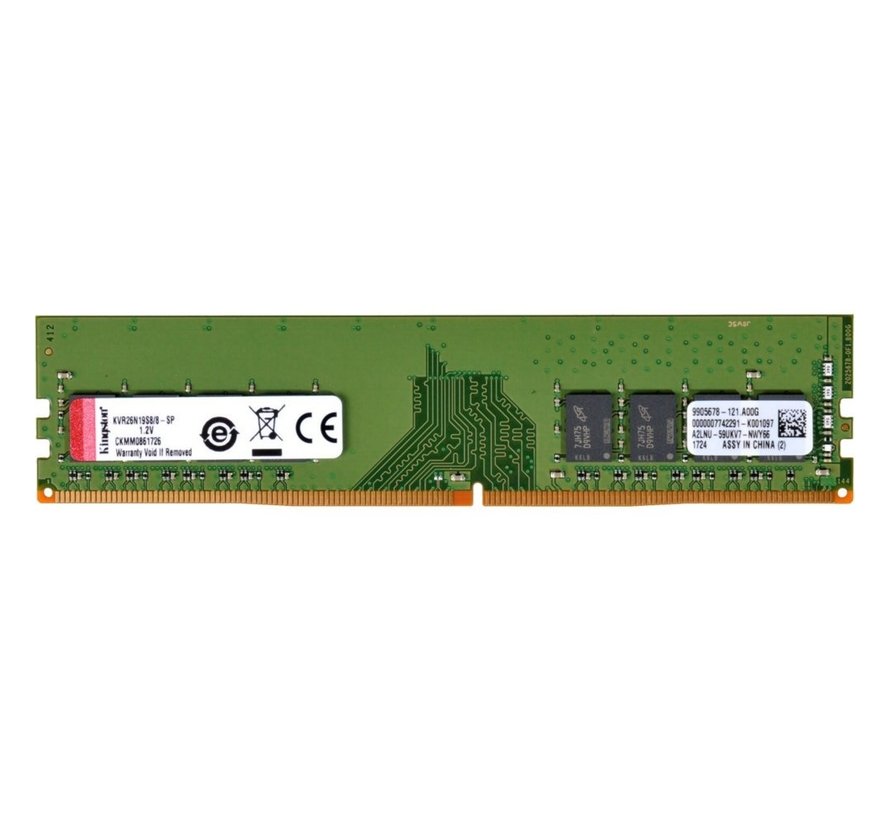

    This document describes ValueRAM's KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of
    19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

    - Power Supply: VDD=1.2V Typical
    - VDDQ = 1.2V Typical
    - VPP - 2.5V Typical
    - VDDSPD=2.2V to 3.6V
    - Nominal and dynamic on-die termination (ODT) for
    - data, strobe, and mask signals
    - Low-power auto self refresh (LPASR)
    - Data bus inversion (DBI) for data bus
    - On-die VREFDQ generation and calibration
    - Single-rank
    - On-board I2 serial presence-detect (SPD) EEPROM
    - 16 internal banks; 4 groups of 4 banks each
    - Fixed burst chop (BC) of 4 and burst length (BL) of 8
    - via the mode register set (MRS)
    - Selectable BC4 or BL8 on-the-fly (OTF)
    - Fly-by topology
    - Terminated control command and address bus
    - PCB: Height 1.23” (31.25mm)
    - RoHS Compliant and Halogen-Free
